Smart Toilet Model SUPREME – wall-hung version

Everyday comfort, with a simple touch.

For people who value automatic functions and easy access to their preferred settings alongside water cleansing.

Lid closed Lid open

Automatic seat and lid

Open the seat and lid with the remote or a foot gesture. Raised elements close automatically after a few minutes.

Settings for two people

Two user profiles let you return to your saved preferences without adjusting the controls each time.

From cleansing to drying

The automatic programme runs through cleansing, oscillating wash and drying. You can also start it with the side button.

A dedicated child programme

A shorter cleansing and drying cycle with settings designed for children makes everyday operation easier.

Explore every function

Choose a group and expand its functions.

Cleansing and drying Adjust the water flow and temperature. Expand Collapse

• Front and rear wash

  Two independent water streams: a focused stream for rear cleansing and a wider, gentler stream for feminine front cleansing.

• Oscillating wash

  In oscillating mode, the nozzle moves back and forth to cleanse a wider area.

• Water flow and nozzle adjustment

  Choose the strength of the water flow and adjust the nozzle position.

• Warm water as you need it

  On-demand heating provides warm water throughout cleansing. Adjust the temperature to your preference.

• Warm air drying

  After washing, you can start the dryer and adjust its temperature.

• Automatic and child programmes

  Choose a preset cycle or use individual functions separately.

Hygiene and care Features that support everyday cleaning and maintenance. Expand Collapse

• Self-rinsing nozzle

  The nozzle rinses before and after washing. It can also be extended for manual cleaning.

• Descaling programme

  The programme helps remove deposits from the water system. This model has no separate solution reservoir; the user manual explains how to introduce the descaling agent.

• Water exchange

  The water exchange function prepares the cleansing system for the next use.

• Inlet filter

  Captures mechanical impurities in the water supplied to the appliance.

• Odour absorption

  An integrated system helps reduce unpleasant odours during use.

• Ceramic bowl and removable upper body

  The wall-hung design makes the floor easier to clean. The removable upper body provides access for care and servicing.

Comfort and control Settings you will want to return to. Expand Collapse

• Heated seat

  Set the seat temperature to suit your preferences.

• Automatic operation and soft closing

  Control the seat and lid with the remote. Raised elements close after a few minutes, even if the toilet has not been used. Manual movement is motor-assisted.

• Two user profiles

  Save your preferences and recall them with the user 1 or user 2 button.

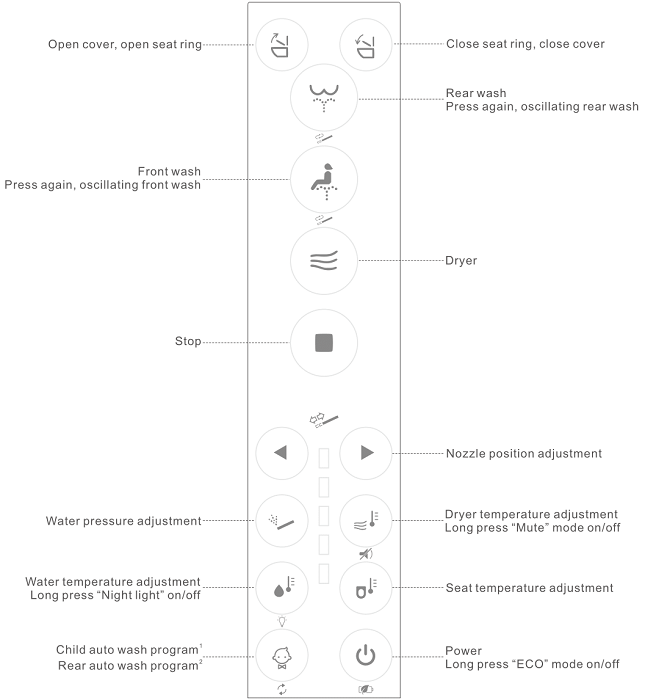

• Remote and side button

  Use the remote for full adjustment or the convenient side button to start the automatic cycle.

• Night light

  Gentle illumination helps you find the toilet after dark.

• Seat occupancy sensor

  Detects when the toilet is in use and works with the cleansing functions.

• LED indicators and mute mode

  Indicators show selected settings. Audible signals can be switched off.

• Energy-saving mode

  Reduces heating operation while the toilet is not in use.

• Foot sensor control

  The sensor is centred beneath the bowl. Successive foot gestures open the lid, then the seat; the third gesture closes both.

Make room for SUPREME.

This wall-hung smart toilet needs a frame with a flushing cistern, a water supply for cleansing and an electrical connection. Plan these before finishing the wall.

Dimensions and technical details

Check the appliance dimensions and drawings when planning your installation.

Construction and dimensions

Model

SUPREME / 7019B

Installation

Wall-hung

Dimensions (L × W)

598 × 380 mm

Weight

38 kg

Fixing centres

180 mm

Waste outlet

Horizontal

Bowl

Sanitary ceramic, semi-rimmed

Seat and lid

ABS plastic; soft closing

Colour

White

Electrical specifications

Power supply

220–240 V, 50/60 Hz

Rated power

1350 W

Ingress protection

IPX4

Water and flushing

Water pressure

0.08–0.75 MPa

Cleansing water consumption

0.5–0.9 l/min

Water heating

Instantaneous

Flushing

Via the cistern flush plate

Technical drawings

Toilet and seat dimensions

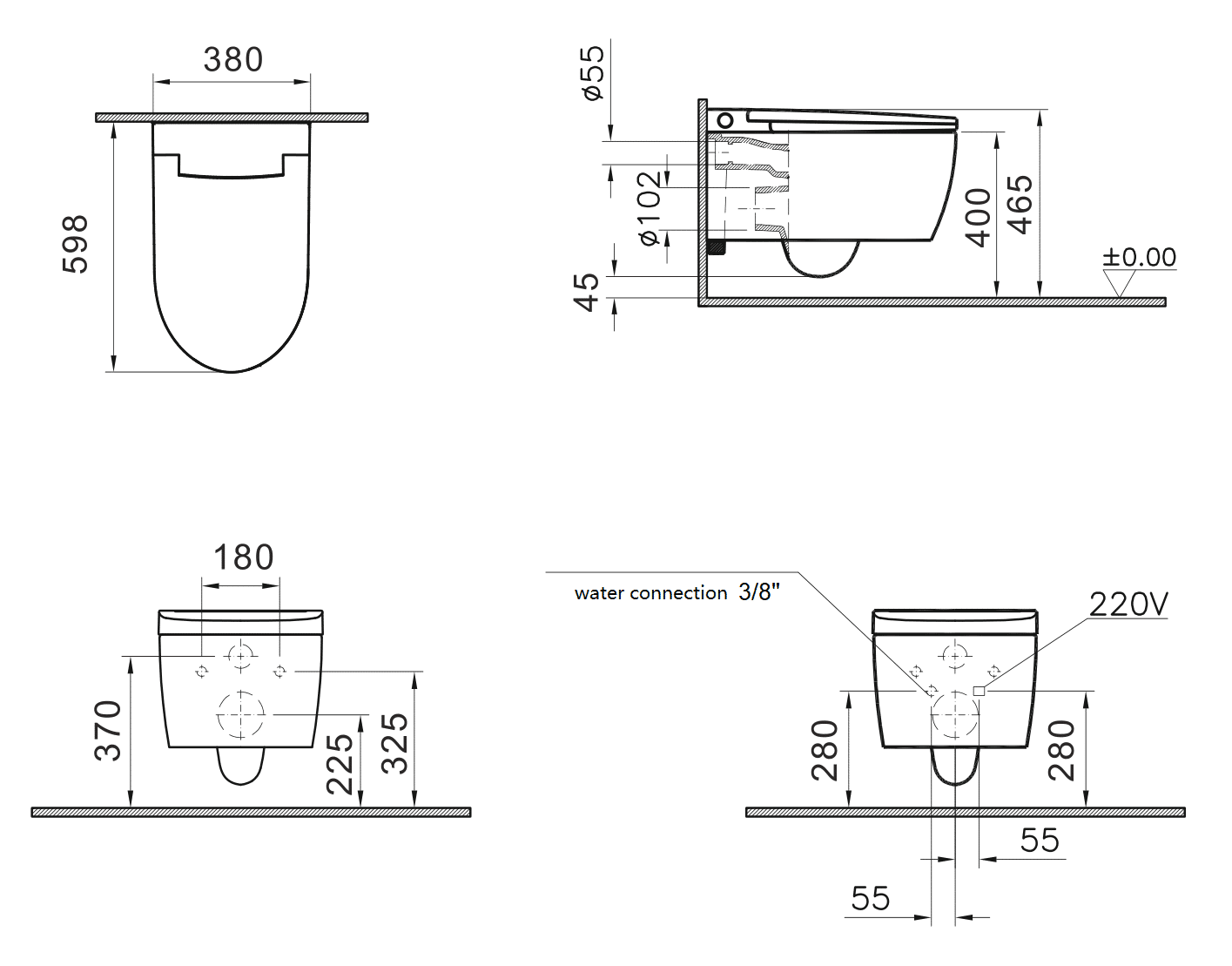

Overall dimensions and connections
