ROYAL smart toilet a steel nozzle and more ways to cleanse
ROYAL combines a stainless-steel nozzle and electrolysed-water technology with additional cleansing modes. A remote control and side dial make everyday operation straightforward.
Front and rear wash
Warm water and adjustable water flow.
Warm air drying
Adjustable drying temperature.
Heated seat
Set the temperature to your preference.
More choice for your daily routine.
A steel nozzle, pulsating cleansing and alternating warm and cool water help you personalise your wash. The side dial also gives quick access to the main functions.
Stainless-steel nozzle
The steel surface is durable and easy to care for. The nozzle rinses automatically before and after cleansing.
Electrolysed-water technology
Water electrolysis supports cleaning of the cleansing system components. An additional hygiene feature of ROYAL.
Pulsating and warm/cool cleansing
Choose a pulsating stream or alternating water temperatures. Both modes are available from the remote during cleansing.
Remote control and side dial
Use the dial to start front or rear cleansing and drying. The remote provides access to the full range of adjustments.
Control without reaching for the remote
Use the side knob to start front or rear cleansing, or drying. The remote provides the full range of settings and additional modes.
Explore every function
Choose a group and expand its functions.
Cleansing and drying Choose a mode and adjust the settings.
-
Front and rear cleansing
Two independent water streams: a focused stream for rear cleansing and a wider, gentler stream for feminine front cleansing.
-
Oscillating cleansing
In oscillating mode, the nozzle moves back and forth to cleanse a wider area.
-
Pulsating cleansing
Alternating stronger and gentler water flow provides a gentle massaging action during cleansing.
-
Warm/cool cleansing
Alternating warmer and cooler water. This mode cannot be combined with pulsating cleansing.
-
Nozzle position and water pressure
Five nozzle positions and five water-pressure settings.
-
Warm water on demand
On-demand heating provides warm water throughout cleansing. Adjust the temperature to your preference.
-
Warm-air drying
Choose the drying temperature or use unheated air.
-
Cleansing and drying from the side dial
Use the side dial to start cleansing or drying. Press STOP to end the current function.
Hygiene and care A steel nozzle and cleaning technologies.
-
Self-cleaning steel nozzle
The nozzle rinses before and after cleansing. It can also extend for manual cleaning.
-
Electrolysed water
Electrolysis technology supports cleaning of the cleansing system components.
-
Water renewal
Automatic water renewal prepares the system for its next use.
-
Inlet filter
Captures particles in the incoming water.
-
Rimless bowl
The rimless design makes the bowl surface easier to reach for cleaning.
-
Access for routine care
Regular cleaning of the nozzle tip, filter and body helps keep the appliance clean and maintain proper water flow.
Automatic flushing with CORAL
With a separately available CORAL frame, flushing starts about 5 seconds after you stand up, even if you have not used the washing functions.
Comfort and controls Features for everyday use.
-
Heated seat
Five heating levels plus an unheated setting.
-
Soft-close seat and lid
Open the seat and lid by hand. The mechanism slows their closing movement.
-
Remote and side dial
Turn the dial to start cleansing. Press to stop a function, or press and hold to start drying.
-
Night light
Gentle bowl lighting helps you use the toilet after dark.
-
Seat occupancy sensor
Detects the user and works with cleansing and drying functions.
-
ECO mode and sound muting
Reduce seat heating between uses and switch off audible signals.
Your settings. Close at hand.

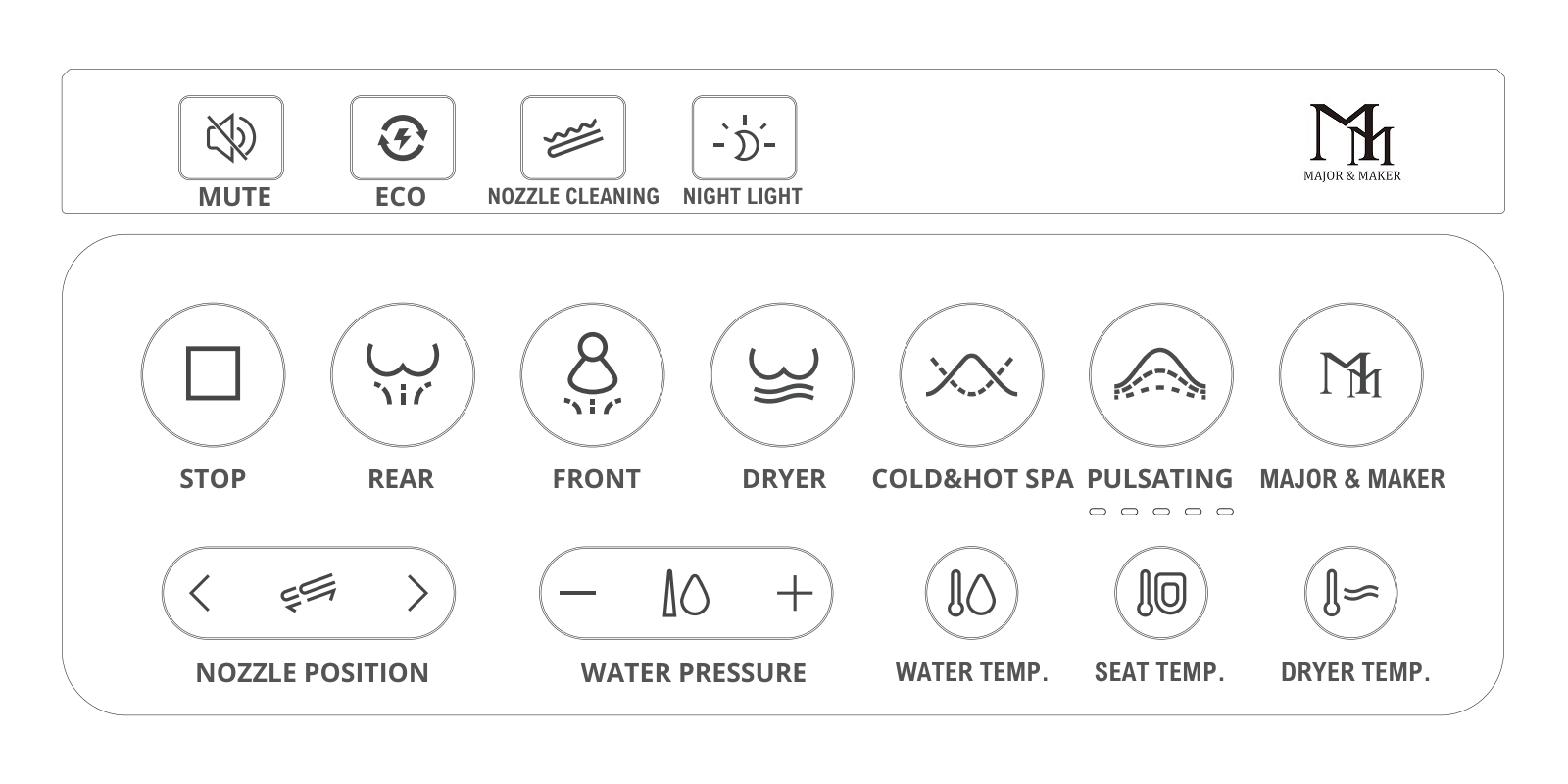

Choose a function and adjust your settings. The diagram below shows the original remote control button labels.
Swipe sideways to see all labels.
Cleansing
Front, rear and oscillating cleansing. Press STOP to end the current function.
Additional modes
Pulsating cleansing or alternating warm and cool water.
Adjustments
Nozzle position, water pressure and water, seat and drying temperatures.
Comfort and care
Night light, ECO mode, sound muting and nozzle cleaning.
A short press and a long press may activate different functions. See the user manual for detailed operating instructions.
Make room for ROYAL.
This wall-hung smart toilet needs a frame with a flushing cistern, a water supply for cleansing and an electrical connection. Plan these before finishing the wall.
Concealed cistern frame
Standard 180 mm fixing centres and a horizontal waste outlet.
Cold water
Provide a dedicated pressurised cold-water connection for the cleansing system.
220 V power supply
Prepare an electrical cable with proper earthing, following the installation manual.
How does flushing work?
Flush using the wall button. A separately available Major&Maker CORAL frame also enables automatic flushing once the toilet is connected to the frame controller using the factory-prepared connector.
The new CORAL version has a conventional wall button that works without electricity or with the toilet switched off. Automatic flushing requires power and a working connection to the controller, which operates the flushing mechanism pneumatically.
The remote operates cleansing functions and settings; it does not activate flushing.
Preparing the connections
The installation manual shows the water, waste and electrical connections. Read it before preparing the connections.
View installation manualDimensions and technical details
Product specifications and drawings to help you plan your bathroom.
Design and dimensions
- Model
- ROYAL / I6-5
- Installation
- Wall-hung
- Dimensions (L × W × H)
- 604 × 400 × 415 mm
- Weight
- 38 kg
- Fixing centres
- 180 mm
- Outlet
- Horizontal
- Bowl
- Rimless sanitary ceramic
- Seat and lid
- ABS plastic; soft closing
- Colour
- White
Electrical specifications
- Power supply
- 220 V, 50 Hz
- Rated power
- 1160 W
- Water heater — max. power
- 1600 W
- Ingress protection
- IPX4
Water and flushing
- Water pressure — static
- 0.07–0.75 MPa
- Water heating
- Instantaneous
- Standard flushing
- Cistern flush plate
- Optional automatic flushing
- With a separately available CORAL frame and connection to its controller
There is a factory warning label on the inside of the lid. Removing it may damage the surface; please take this into account before purchase.
Technical drawings
Seat and open lid
Swipe the drawing sideways to read all dimensions.

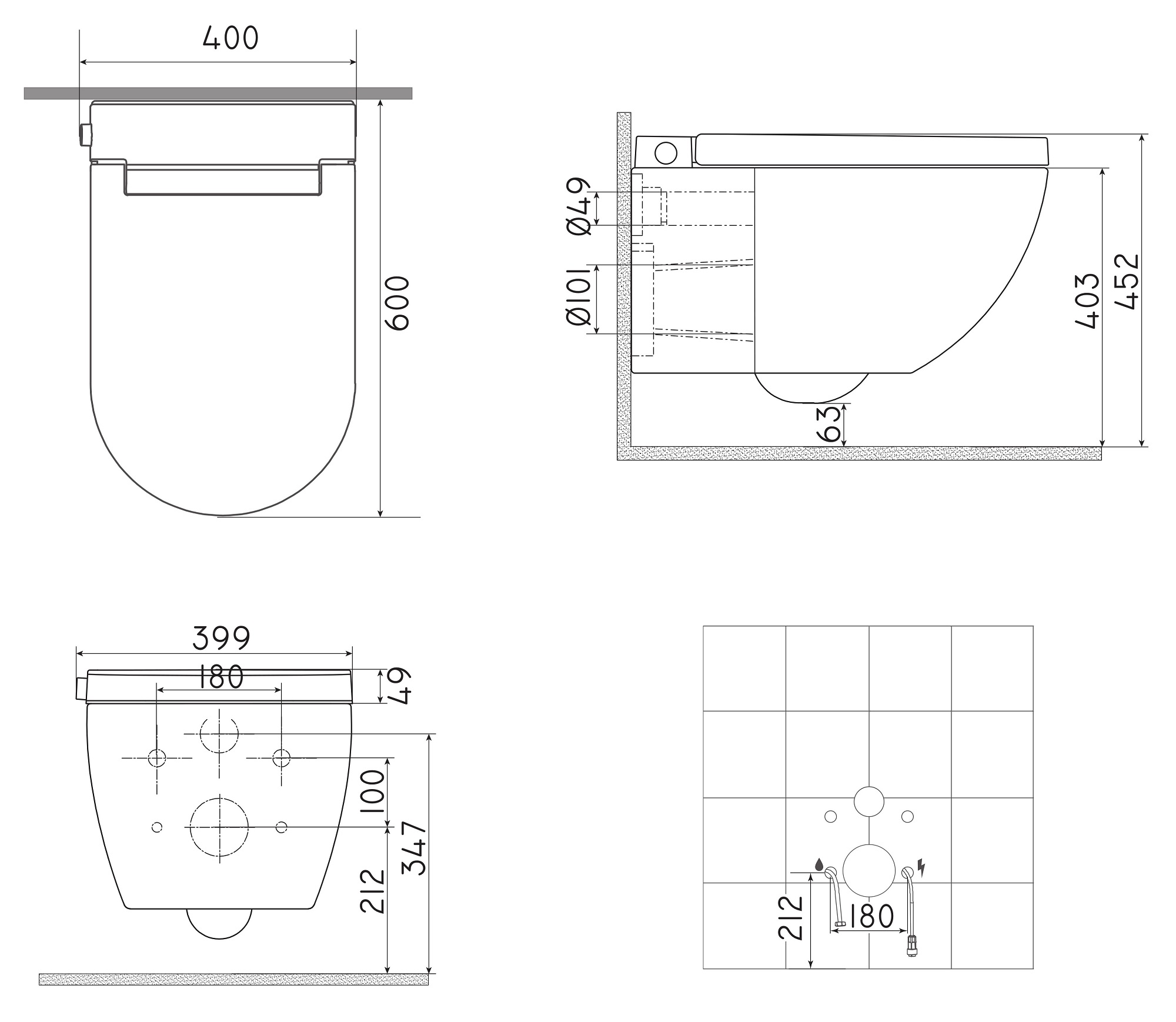

Overall dimensions and connections
Swipe the drawing sideways to read all dimensions.
