ROYAL + CORAL set a steel nozzle and simpler installation
The ROYAL smart toilet combines a steel nozzle, electrolysed-water technology and additional cleansing modes.The set includes a CORAL frame with a prepared cleansing-water feed, automatic flushing and a conventional wall flush button.
Front and rear wash
Warm water and adjustable water flow.
Warm air drying
Adjustable drying temperature.
Heated seat
Set the temperature to your preference.

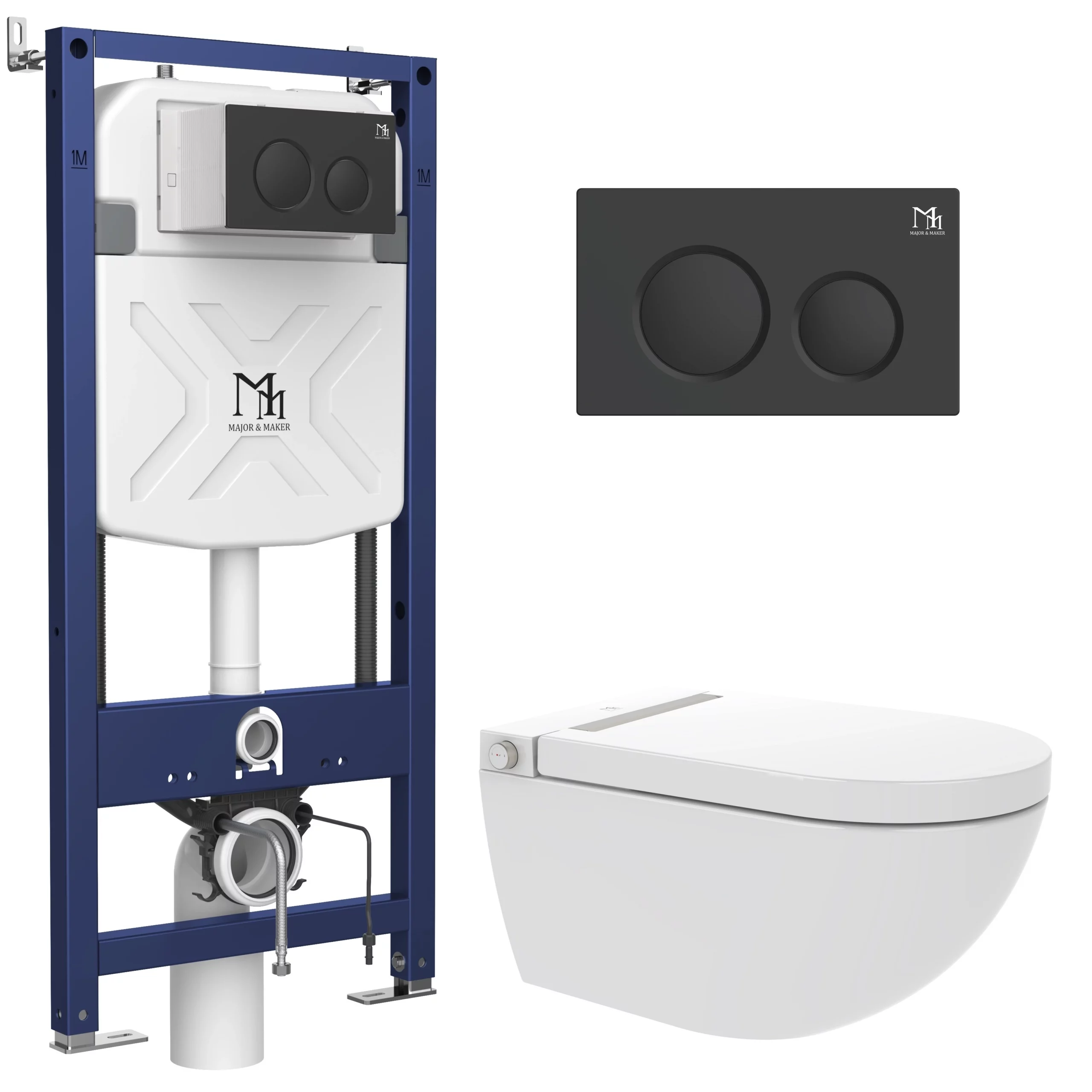

Three elements in one set
ROYAL I6-5
A steel nozzle, electrolysed-water technology and additional cleansing modes. Operate it with the remote or side dial.
CORAL
Flushing cistern and a factory-routed hose for the cleansing system.
CORAL BLACK
A conventional push button. Manual flushing also works without electricity.
Less work routing the water supply
The frame has factory-separated supplies for flushing and cleansing water. An additional hose runs through a dedicated channel, so the installer does not need to add a tee fitting or route a separate pipe behind the enclosure to the waste-outlet area.
Automatic flushing after use
The toilet flushes about 5 seconds after you stand up, even if no cleansing function was used. Automatic flushing requires power and a connection between the toilet and the frame controller.
A frame designed for years of use
Quiet operation and durable components
The flushing system is designed for discreet, reliable performance. A sturdy frame provides stability, while high-quality internal components support the long service life of the concealed installation.
Easy servicing and spare parts
Removing the flush plate gives you access to key components without disturbing the bathroom finishes. We provide long-term access to spare parts, so individual components can be replaced when needed instead of the entire frame.
The wall button works without electricity. The toilet’s cleansing and automatic functions require power.
More choice for your daily routine.
A steel nozzle, pulsating cleansing and alternating warm and cool water help you personalise your wash. The side dial also gives quick access to the main functions.
Stainless-steel nozzle
The steel surface is durable and easy to care for. The nozzle rinses automatically before and after cleansing.
Electrolysed-water technology
Water electrolysis supports cleaning of the cleansing system components. An additional hygiene feature of ROYAL.
Pulsating and warm/cool cleansing
Choose a pulsating stream or alternating water temperatures. Both modes are available from the remote during cleansing.
Remote control and side dial
Use the dial to start front or rear cleansing and drying. The remote provides access to the full range of adjustments.
Control without reaching for the remote
Use the side knob to start front or rear cleansing, or drying. The remote provides the full range of settings and additional modes.
Explore every function
Choose a group and expand its functions.
Cleansing and drying Choose a mode and adjust the settings.
-
Front and rear cleansing
Two independent water streams: a focused stream for rear cleansing and a wider, gentler stream for feminine front cleansing.
-
Oscillating cleansing
In oscillating mode, the nozzle moves back and forth to cleanse a wider area.
-
Pulsating cleansing
Alternating stronger and gentler water flow provides a gentle massaging action during cleansing.
-
Warm/cool cleansing
Alternating warmer and cooler water. This mode cannot be combined with pulsating cleansing.
-
Nozzle position and water pressure
Five nozzle positions and five water-pressure settings.
-
Warm water on demand
On-demand heating provides warm water throughout cleansing. Adjust the temperature to your preference.
-
Warm-air drying
Choose the drying temperature or use unheated air.
-
Cleansing and drying from the side dial
Use the side dial to start cleansing or drying. Press STOP to end the current function.
Hygiene and care A steel nozzle and cleaning technologies.
-
Self-cleaning steel nozzle
The nozzle rinses before and after cleansing. It can also extend for manual cleaning.
-
Electrolysed water
Electrolysis technology supports cleaning of the cleansing system components.
-
Water renewal
Automatic water renewal prepares the system for its next use.
-
Inlet filter
Captures particles in the incoming water.
-
Rimless bowl
The rimless design makes the bowl surface easier to reach for cleaning.
-
Access for routine care
Regular cleaning of the nozzle tip, filter and body helps keep the appliance clean and maintain proper water flow.
Automatic flushing with CORAL
With the included CORAL frame, the toilet flushes about 5 seconds after you stand up, even if no cleansing function was used.
Comfort and controls Features for everyday use.
-
Heated seat
Five heating levels plus an unheated setting.
-
Soft-close seat and lid
Open the seat and lid by hand. The mechanism slows their closing movement.
-
Remote and side dial
Turn the dial to start cleansing. Press to stop a function, or press and hold to start drying.
-
Night light
Gentle bowl lighting helps you use the toilet after dark.
-
Seat occupancy sensor
Detects the user and works with cleansing and drying functions.
-
ECO mode and sound muting
Reduce seat heating between uses and switch off audible signals.
Your settings. Close at hand.
Choose a function and adjust your settings. The diagram below shows the original remote control button labels.
Swipe sideways to see all labels.
Cleansing
Front, rear and oscillating cleansing. Press STOP to end the current function.
Additional modes
Pulsating cleansing or alternating warm and cool water.
Adjustments
Nozzle position, water pressure and water, seat and drying temperatures.
Comfort and care
Night light, ECO mode, sound muting and nozzle cleaning.
A short press and a long press may activate different functions. See the user manual for detailed operating instructions.
Plan the set installation.
The CORAL frame and flush plate are included. Plan the frame’s water supply, waste connection and toilet power supply before finishing the wall.
CORAL frame included
Toilet fixing centres: 180 mm. The drawing below shows frame dimensions and mounting points.
Cleansing-water supply
Use the additional hose factory-routed through the frame. Connect it to the cleansing system as specified in the manual.
220 V power supply
Prepare an electrical cable with proper earthing, following the installation manual.
CORAL automatic-flush connection
Connect the factory-prepared connectors on the toilet and the controller inside the frame. The controller operates the flushing mechanism pneumatically. A working connection and power are required for automatic flushing; manual use of the wall button is independent.
How does flushing work?
The set flushes automatically about 5 seconds after you stand up, even if you have not used cleansing. The ROYAL remote controls the toilet’s functions; it does not activate flushing.
The wall button operates mechanically, including during a power cut or when the toilet is switched off.
Preparing the connections
The installation manual shows the toilet’s water, waste and power connections. The frame drawing is included in the dimensions section.
View installation manualDimensions and technical details
Toilet, frame and flush plate specifications, with drawings to help plan the installation.
Design and dimensions
- Model
- ROYAL / I6-5
- Installation
- Wall-hung
- Dimensions (L × W × H)
- 604 × 400 × 415 mm
- Toilet weight
- 38 kg
- Fixing centres
- 180 mm
- Outlet
- Horizontal
- Bowl
- Rimless sanitary ceramic
- Seat and lid
- ABS plastic; soft closing
- Colour
- White
Electrical specifications
- Power supply
- 220 V, 50 Hz
- Rated power
- 1160 W
- Water heater — max. power
- 1600 W
- Ingress protection
- IPX4
Water and flushing
- Water pressure — static
- 0.07–0.75 MPa
- Water heating
- Instantaneous
- Standard flushing
- Cistern flush plate
- Automatic flushing in this set
- Yes — with the toilet connected to the included CORAL frame controller
There is a factory warning label on the inside of the lid. Removing it may damage the surface; please take this into account before purchase.
CORAL frame — construction and installation
- Brand / series
- Major&Maker / CORAL
- Frame and flush plate model
- MM-S2003-02-B
- Application
- Wall-hung WC; drywall enclosure
- Frame width
- 500 mm
- Frame height
- 1140 mm
- Minimum installation depth, excluding wall finish
- 143 mm
- Installation depth range
- 143–203 mm
- Wall finish thickness in front of frame
- 30–105 mm
- Leg adjustment
- 0–120 mm
- Toilet fixing centres
- 180 / 230 mm
- Included flush plate colour
- black
- Service access
- By removing the flush plate
Frame — water supply and flushing
- Cistern water inlet
- G 1/2″ (DN15)
- Cleansing-water supply
- Factory-separated supply; additional hose in frame channel
- Toilet outlet connections
- Ø90 mm
- Water pressure — frame
- 0.02–0.8 MPa
- Cistern water temperature
- 5–45°C
- Manual flushing
- Conventional wall button; also works without power
- Automatic flushing in this set
- Yes, once correctly connected; requires power
- Flush volume stated in frame manual
- 6 L / 4 L
Installation depth covers the frame and its mounting; allow separately for the wall finish. The pressure values above apply to the cistern. The toilet’s own requirements are listed in its specifications.
Included installation components
- Water inlet with valve; additional cleansing-water hose.
- Frame fixings: brackets, screws and wall plugs.
- Two fixing studs / bolts for the ceramic toilet.
- Connection sleeves, flush pipe and outlet components.
- Protective covers and caps, plus the service-opening housing.
- A CORAL flush plate in the selected colour.
- Protective water-supply sleeve and spacer brackets.
- Automatic-flush controller with factory-prepared toilet connector.
Technical drawings
Seat and open lid
Swipe the drawing sideways to read all dimensions.
Overall dimensions and connections
Swipe the drawing sideways to read all dimensions.
Frame CORAL — dimensions and mounting points
Swipe the drawing sideways to read all dimensions.
