EMERALD WHITE + CORAL set automation, a steel nozzle and two profiles
An all-white finish with an automatic seat and lid. A stainless steel nozzle, two user profiles and a descaling programme support everyday comfort.The set includes a CORAL frame with a prepared cleansing-water feed, automatic flushing and a conventional wall flush button.
Front and rear wash
Warm water, adjustable flow.
Warm air drying
Adjustable drying temperature.
Heated seat
Set the temperature to your preference.

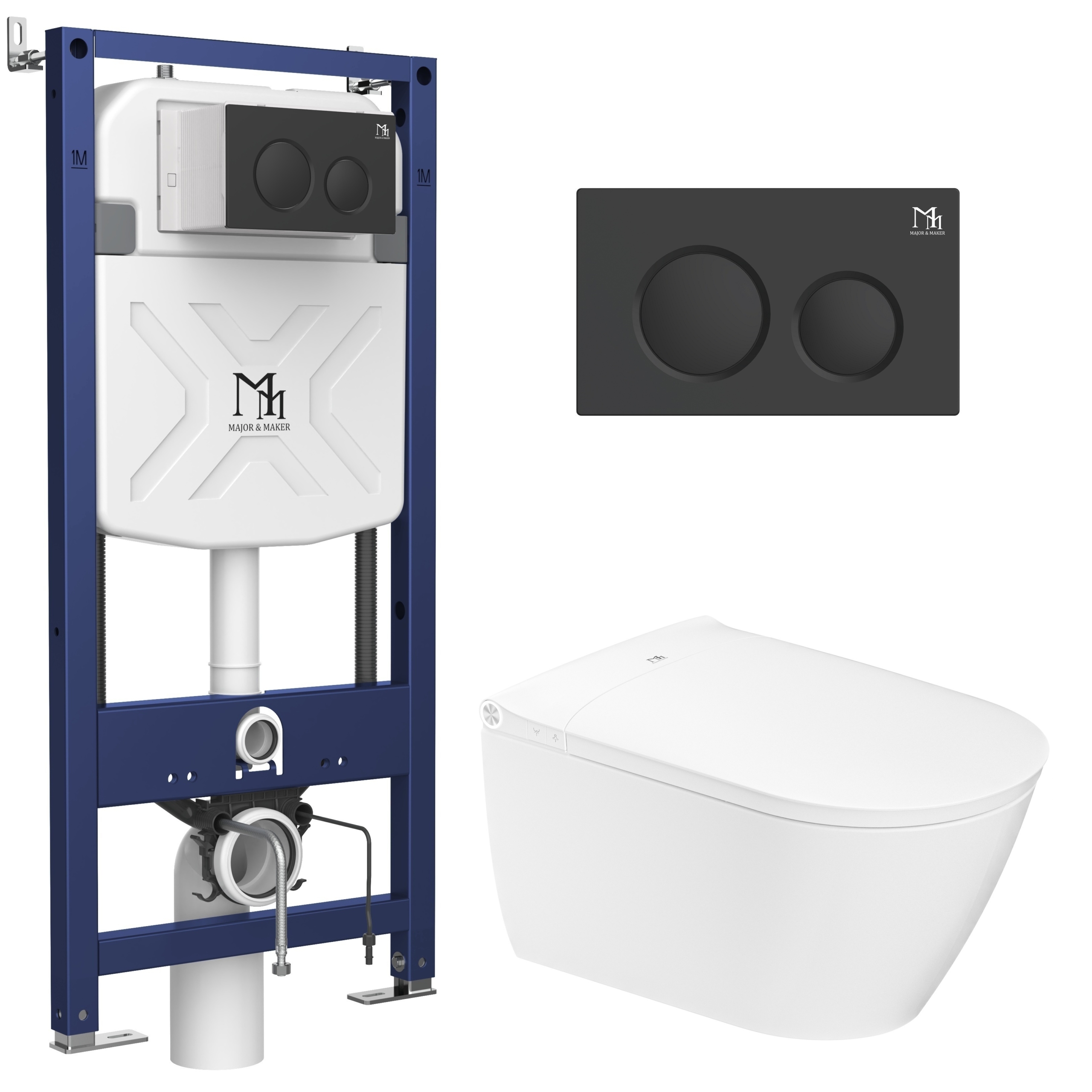

Three elements in one set

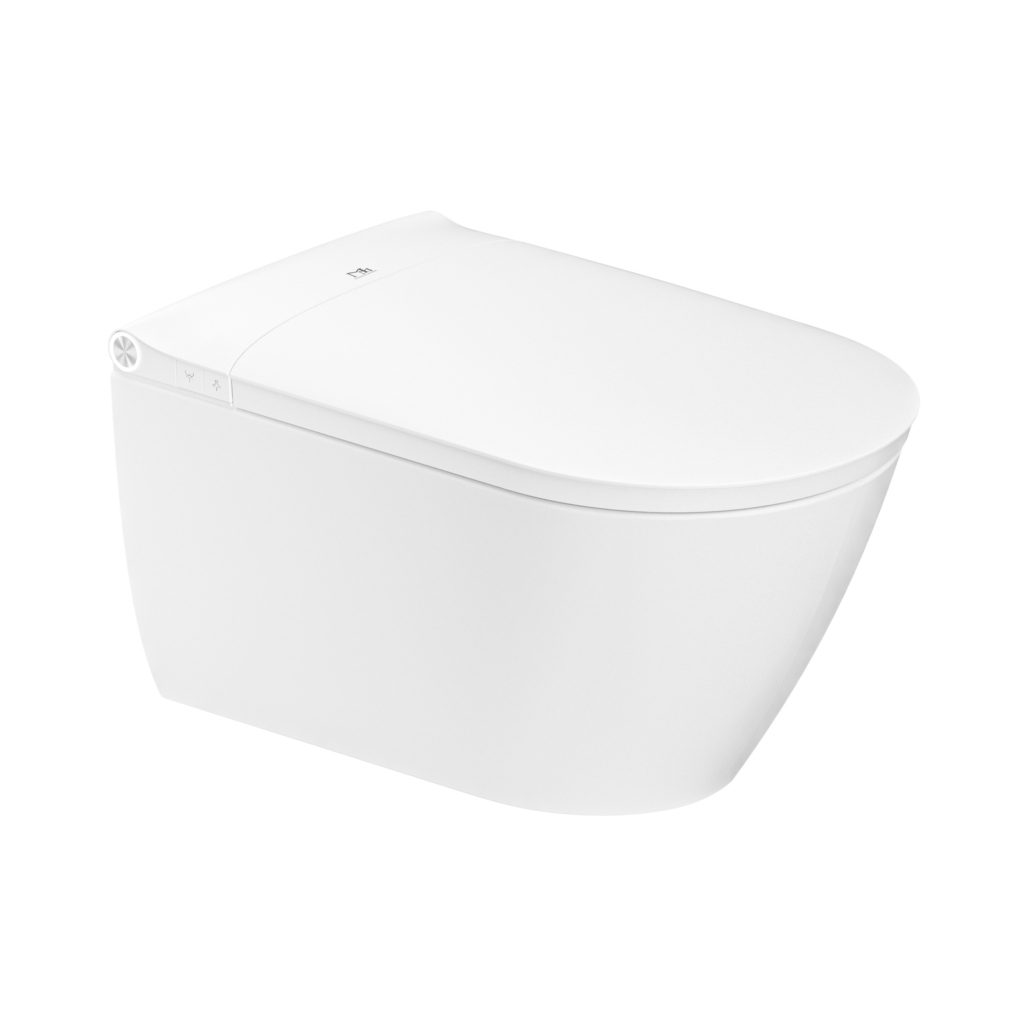

EMERALD WHITE H101-W
An all-white finish. An automatic seat and lid, a stainless steel nozzle, two profiles and descaling.
CORAL
Flushing cistern and a factory-routed hose for the cleansing system.
CORAL BLACK
A conventional push button. Manual flushing also works without electricity.
Less work routing the water supply
The frame has factory-separated supplies for flushing and cleansing water. An additional hose runs through a dedicated channel, so the installer does not need to add a tee fitting or route a separate pipe behind the enclosure to the shower toilet.
Flushing after use and by remote
The dedicated CORAL concealed cistern system enables automatic flushing when you stand up. The remote offers a partial or full flush. These functions require power and a connection between the toilet and the frame controller.
Quiet operation and durable components
The flushing system is designed for discreet, reliable performance. A sturdy frame provides stability, while high-quality internal components support the long service life of the concealed installation.
Easy servicing and spare parts
Removing the flush plate gives you access to key components without disturbing the bathroom finishes. We provide long-term access to spare parts, so individual components can be replaced when needed instead of the entire frame.
The wall button works without electricity. The toilet’s cleansing and automatic functions require power.
Your settings. Convenient automation.
A stainless steel nozzle, two profiles and automatic opening support everyday comfort. The descaling programme helps maintain the water system.
Automatic seat and lid
Powered opening and closing make the seat and lid easier to use. Both can also be controlled with the remote.
Stainless steel nozzle
The stainless-steel nozzle provides front and rear cleansing. Its smooth surface is easy to keep clean.
Two user profiles
Save personal settings and recall them with the User 1 or User 2 button. Convenient for two people sharing the toilet.

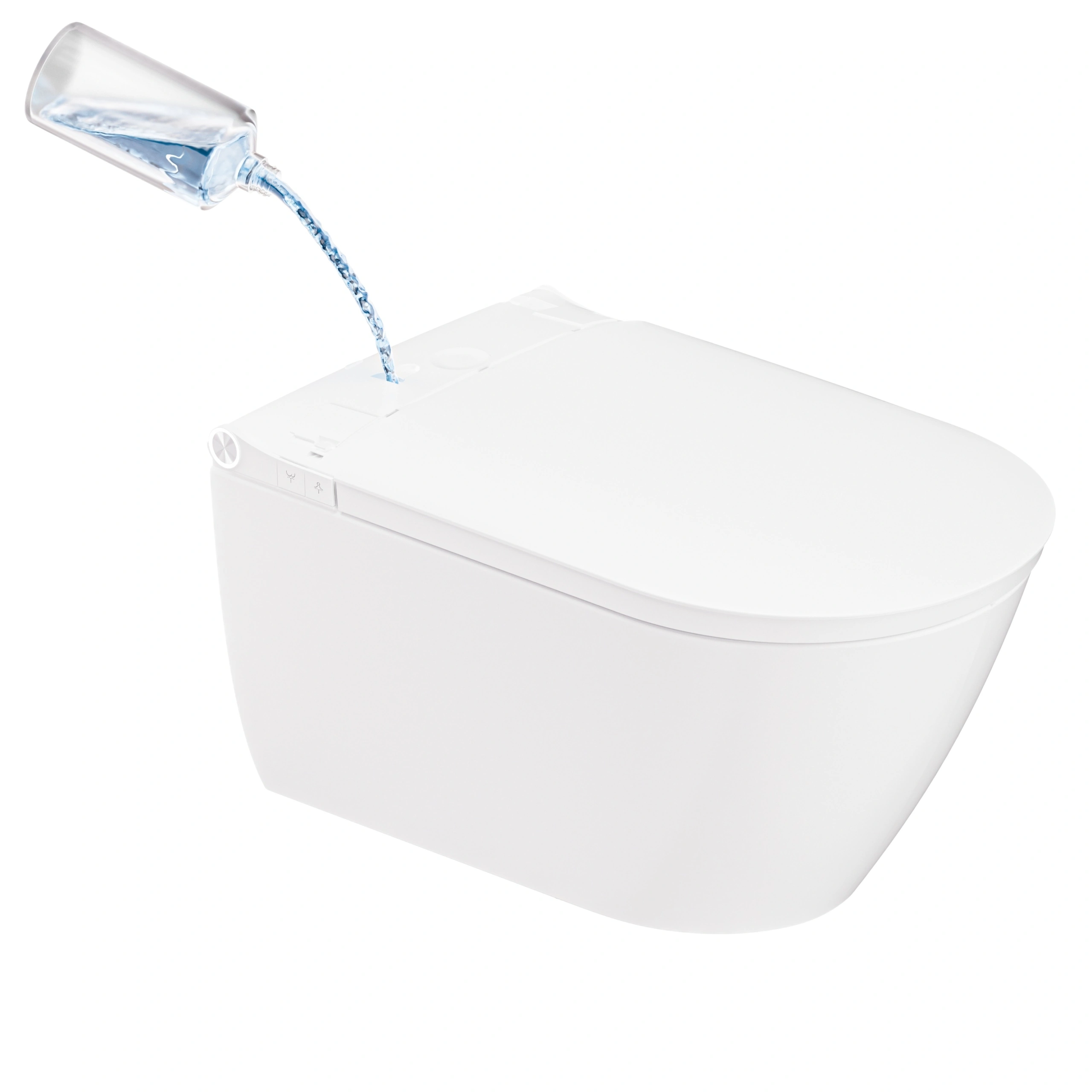

Effective descaling
A descaling programme and a separate solution reservoir help reduce limescale, keep the water system clear and extend the service life of its components.
Stainless steel nozzle with adjustable settings
Choose front or rear cleansing and adjust the nozzle position and water flow.
Oscillating and pulsating modes offer different cleansing patterns.
Explore every function
Choose a group and expand its functions.
Cleansing and dryingChoose a mode and adjust the settings.
Front and rear wash
Two independent water streams: a focused stream for rear cleansing and a wider, gentler stream for feminine front cleansing.
Oscillating wash
In oscillating mode, the nozzle moves back and forth to cleanse a wider area.
Nozzle position and flow
Adjust the nozzle position and water flow to suit your preferences.
Warm water on demand
On-demand heating provides warm water throughout cleansing. Adjust the temperature to your preference.
Warm air drying
Start drying after cleansing and select the air temperature.
Pulsating wash
Alternating stronger and gentler water flow provides a gentle massaging action during cleansing.
Hygiene and careFeatures that help keep the appliance clean.
Stainless steel nozzle
The stainless-steel nozzle provides front and rear cleansing. Its smooth surface is easy to keep clean.
Automatic nozzle rinsing
The nozzle is rinsed with water before and after cleansing.
Effective descaling
A descaling programme and a separate solution reservoir help reduce limescale, keep the water system clear and extend the service life of its components.
Swirl flushing
A swirling flow rinses the inside of the bowl. The rimless design makes it easier to reach the surface when cleaning.
Bowl pre-wetting
The bowl is moistened before use. The included CORAL frame enables this function; it can be switched on or off using the remote.
Automatic flushing with CORAL
The included CORAL frame enables flushing when you stand up, plus a partial or full flush from the remote. Automatic operation requires power and a connection to the frame controller.
Descaling-fluid reservoir
Cutaway illustrating water flow

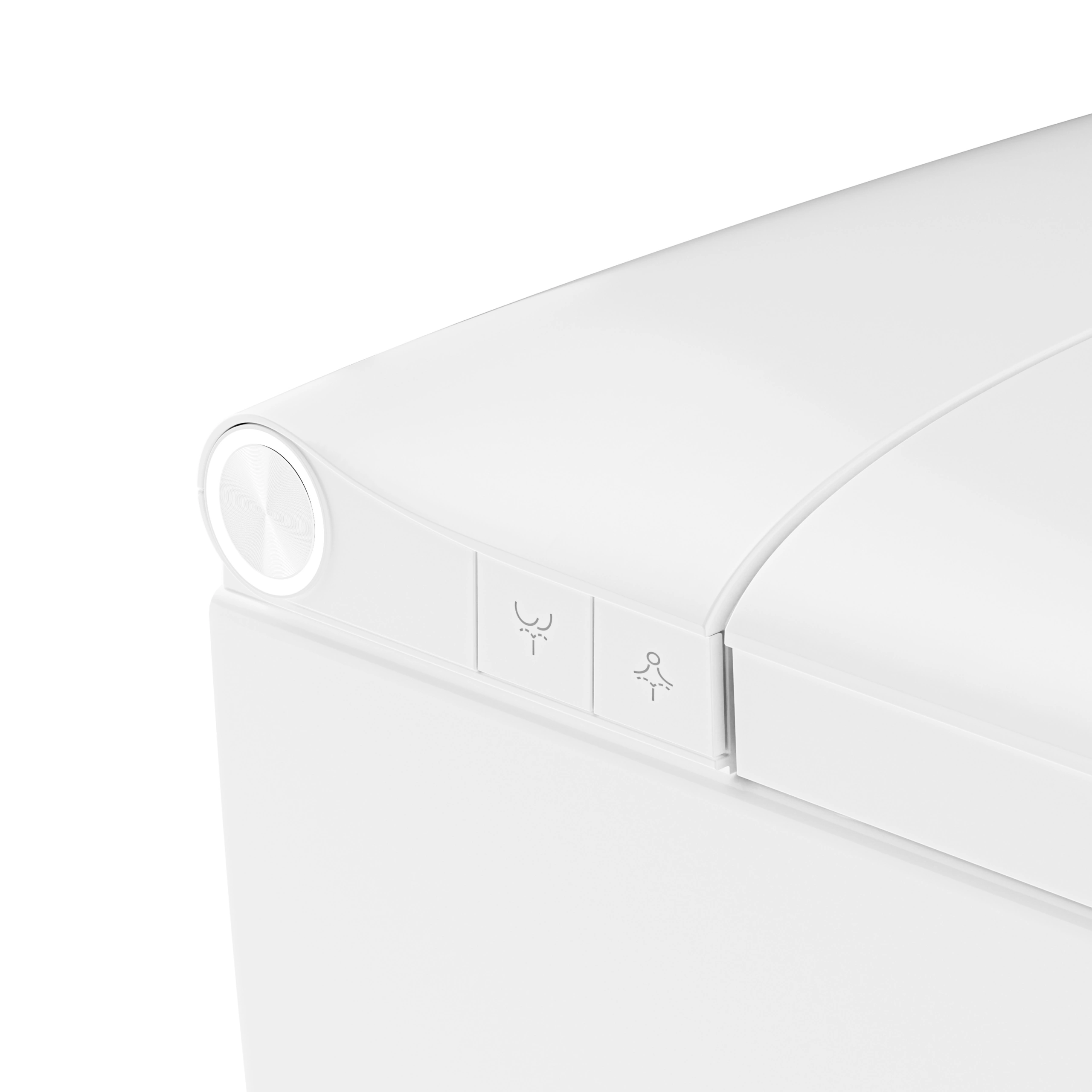

Side-mounted controls
Comfort and controlsConvenience for everyday use.
Heated seat
Set the seat temperature to suit your preferences.
Automatic seat and lid
Powered opening and closing make the seat and lid easier to use. Both can also be controlled with the remote.
Two user profiles
Save personal settings and recall them with the User 1 or User 2 button. Convenient for two people sharing the toilet.
Foot sensor
Use a foot gesture to open the lid, raise the seat or close both. With the included CORAL frame, closing the seat can also trigger flushing when this function is enabled.
Remote and side buttons
The remote gives access to settings. Side buttons let you start front or rear cleansing or stop the current function.
Bowl lighting
Gentle lighting makes the toilet easier to use at night.
Intelligent temperature adjustment
When enabled, this feature adjusts seat, water and air temperatures to the ambient temperature.
ECO and quiet modes
ECO lowers the seat temperature while the toilet is idle. Quiet mode turns off audible signals.
Seat sensor
The sensor detects when the seat is occupied and enables the cleansing functions during use.
Your settings, always within reach.
Choose a cleansing mode and adjust the settings. The remote diagram shows the button functions.
Swipe sideways to see all labels.
Cleansing
Front, rear and oscillating wash. The STOP button ends the current function.
Adjustment
Nozzle position, water flow and water, drying and seat temperatures.
Two profiles
User 1 and User 2 buttons save and recall personal settings.
Automatic controls
Seat and lid controls, plus a partial or full flush with the included CORAL frame.
A short press and a long press may activate different functions. See the user manual for detailed operating instructions.
Plan the set installation.
The CORAL frame and flush plate are included. Plan the frame’s water supply, waste connection and toilet power supply before finishing the wall.
CORAL frame included
Toilet fixing centres: 180 mm. The drawing below shows frame dimensions and mounting points.
Cleansing-water supply
Use the additional hose factory-routed through the frame. Connect it to the cleansing system as specified in the manual.
220 V power supply
Prepare an electrical cable with proper earthing, following the installation manual.
CORAL automatic-flush connection
Connect the factory-prepared connectors on the toilet and the controller inside the frame. The controller operates the flushing mechanism pneumatically. A working connection and power are required for automatic flushing; manual use of the wall button is independent.
How does flushing work?
With the included CORAL frame, the toilet can flush automatically when you stand up. The remote offers a partial or full flush. Flushing after the seat closes is also available; the manual explains the individual settings.
Automatic operation requires power and a connection to the CORAL controller. The wall button operates mechanically, including during a power cut or when the toilet is switched off.
Preparing the connections
The installation manual shows the toilet’s water, waste and power connections. The frame drawing is included in the dimensions section.
View installation manualDimensions and technical details
Toilet, frame and flush plate specifications, with drawings to help plan the installation.
Construction and dimensions
- Model
- EMERALD WHITE / H101‑W
- Installation
- Wall-hung
- Dimensions (L × W × H)
- 600 × 380 × 415 mm
- Toilet weight
- 38 kg
- Fixing centres
- 180 mm
- Outlet
- Horizontal
- Bowl
- Rimless sanitary ceramic
- Seat and lid
- ABS; soft closing
- Finish
- White
Power supply
- Power supply
- 220 V, 50 Hz
- Rated power
- 1080 W
- Water heater power
- 1600 W
- Protection rating
- IPX4
Water and flushing
- Water supply pressure
- 0.08–0.8 MPa
- Water heating
- Instantaneous
- Standard flushing
- Swirl; operated by cistern flush plate
- Automatic flushing in this set
- Yes — with the toilet connected to the included CORAL frame controller
CORAL frame — construction and installation
- Brand / series
- Major&Maker / CORAL
- Frame and flush plate model
- MM-S2003-02-B
- Application
- Wall-hung WC; drywall enclosure
- Frame width
- 500 mm
- Frame height
- 1140 mm
- Minimum installation depth, excluding wall finish
- 143 mm
- Installation depth range
- 143–203 mm
- Wall finish thickness in front of frame
- 30–105 mm
- Leg adjustment
- 0–120 mm
- Toilet fixing centres
- 180 / 230 mm
- Included flush plate colour
- black
- Service access
- By removing the flush plate
Frame — water supply and flushing
- Cistern water inlet
- G 1/2″ (DN15)
- Cleansing-water supply
- Factory-separated supply; additional hose in frame channel
- Toilet outlet connections
- Ø90 mm
- Water pressure — frame
- 0.02–0.8 MPa
- Cistern water temperature
- 5–45°C
- Manual flushing
- Conventional wall button; also works without power
- Automatic flushing in this set
- Yes, once correctly connected; requires power
- Flush volume stated in frame manual
- 6 L / 4 L
Installation depth covers the frame and its mounting; allow separately for the wall finish. The pressure values above apply to the cistern. The toilet’s own requirements are listed in its specifications.
Included installation components
- Water inlet with valve; additional cleansing-water hose.
- Frame fixings: brackets, screws and wall plugs.
- Two fixing studs / bolts for the ceramic toilet.
- Connection sleeves, flush pipe and outlet components.
- Protective covers and caps, plus the service-opening housing.
- A CORAL flush plate in the selected colour.
- Protective water-supply sleeve and spacer brackets.
- Automatic-flush controller with factory-prepared toilet connector.
Technical drawings
Seat and open-lid dimensions
Swipe the drawing sideways to read all dimensions.
Toilet dimensions and connection positions
Swipe the drawing sideways to read all dimensions.
Frame CORAL — dimensions and mounting points
Swipe the drawing sideways to read all dimensions.
